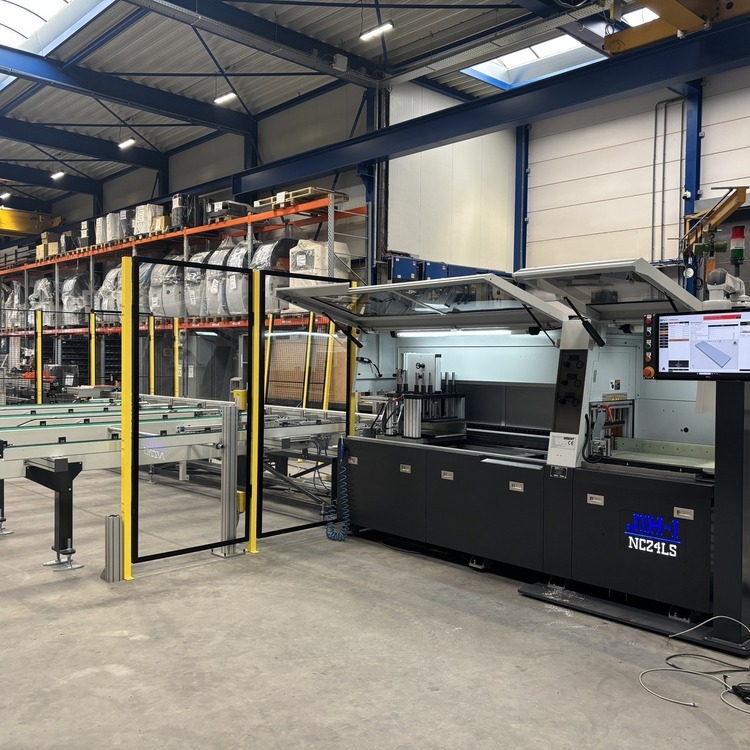

The precision behind sawing: how a tenth of a millimeter is achieved
When sawing profiles, everything revolves around repeatability: every cut must land in exactly the right spot, time after time. What looks like a simple movement from the outside, sliding material forward and cutting through it, is a precision challenge under the hood. In this blog, we dive into the technology that determines how accurately a saw line can actually position, and which details play a role in that.
Two ways to position material
In a miter saw line, the profile is advanced to the desired saw position, after which the saw makes its cut. Exactly how that advancing happens differs per drive method, and that directly determines the achievable accuracy.
Rack-and-pinion system. With this drive method, the material is pushed forward via a toothed rack. It's a robust and relatively simple solution, with an accuracy of typically around a quarter of a millimeter. For many applications, that's more than sufficient.
Spindle drive. With a spindle, there's a fixed pitch on the shaft (for example, 10 mm per revolution), and position is measured using thousands of pulses per rotation. That combination of a mechanically precise pitch and fine measurement makes positioning accurate to within a tenth of a millimeter possible. Travel speed is typically somewhat lower than with a rack-and-pinion system, which is a logical trade-off: more measurement points and more precise mechanics cost a bit of speed.
The difference, then, doesn't lie in the saw itself, but in the way the material is positioned in front of it.
Why that tenth of a millimeter originates at the drawing table
Accuracy requirements usually don't originate at the saw machine, but much earlier in the process: at the drawing table. A draftsman specifies an angle dimension accurate to a tenth of a millimeter, simply because the standard dimensioning convention calls for it.
At that point, the dimension is still abstract, just a number on paper. Only later in the process does that requirement translate into a concrete technical task for the production machine.
This nicely illustrates how closely design and production technology are intertwined. A drawing with a tenth-millimeter tolerance calls for a drive system that can actually deliver on that, in this case a spindle system rather than a rack-and-pinion.
Anyone who understands this relationship can factor in, when designing a production process, which drive technology is needed for a particular product type.
Precision during the cut itself: the detail of pulling back
Accuracy doesn't only come into play when positioning the material, but also during the sawing motion itself. A nice example of refined process technology: just before the saw blade retracts from the cut, the material on both sides of the saw is pulled apart by a fraction of a millimeter. As a result, the retracting blade no longer touches the freshly cut material.
This detail may seem small, but it has a direct technical function. If the saw blade still touches the profile while retracting, the blade wears faster and burr formation occurs on the product. When the movement is executed correctly, the cut is perfectly straight and nearly silent, you can literally hear the difference in the absence of a scraping sound.
It's a good example of how a small mechanical detail (a matter of a fraction of a millimeter, at the right moment) directly affects quality: less wear on the tool, and a product that already meets requirements without post-processing (deburring).
How to determine which precision is needed
Not every application requires the highest accuracy, and that's not necessary at all. For simple, straight cross-cuts without critical dimensioning, a rack-and-pinion system is often more than sufficient, and the slightly higher travel speed then delivers a welcome boost in output.
As soon as a product does require a tight angular tolerance, for example due to further assembly, aesthetics, or functional fit, accuracy becomes the determining factor in choosing a drive system.
The question you're best off asking yourself is not "how fast can the machine cut?" but "what accuracy does my product mix require, and which drive system delivers that?"
Conclusion
Precision in sawing technology isn't an abstract quality attribute, but a concrete technical property that stems from a few clear factors: the choice between rack-and-pinion and spindle drive, and fine mechanical details such as the timing of the pull back when the blade retracts.
Anyone who understands these factors doesn't just understand how a saw line works, but can also think much more specifically about which technique best fits a particular product type.
